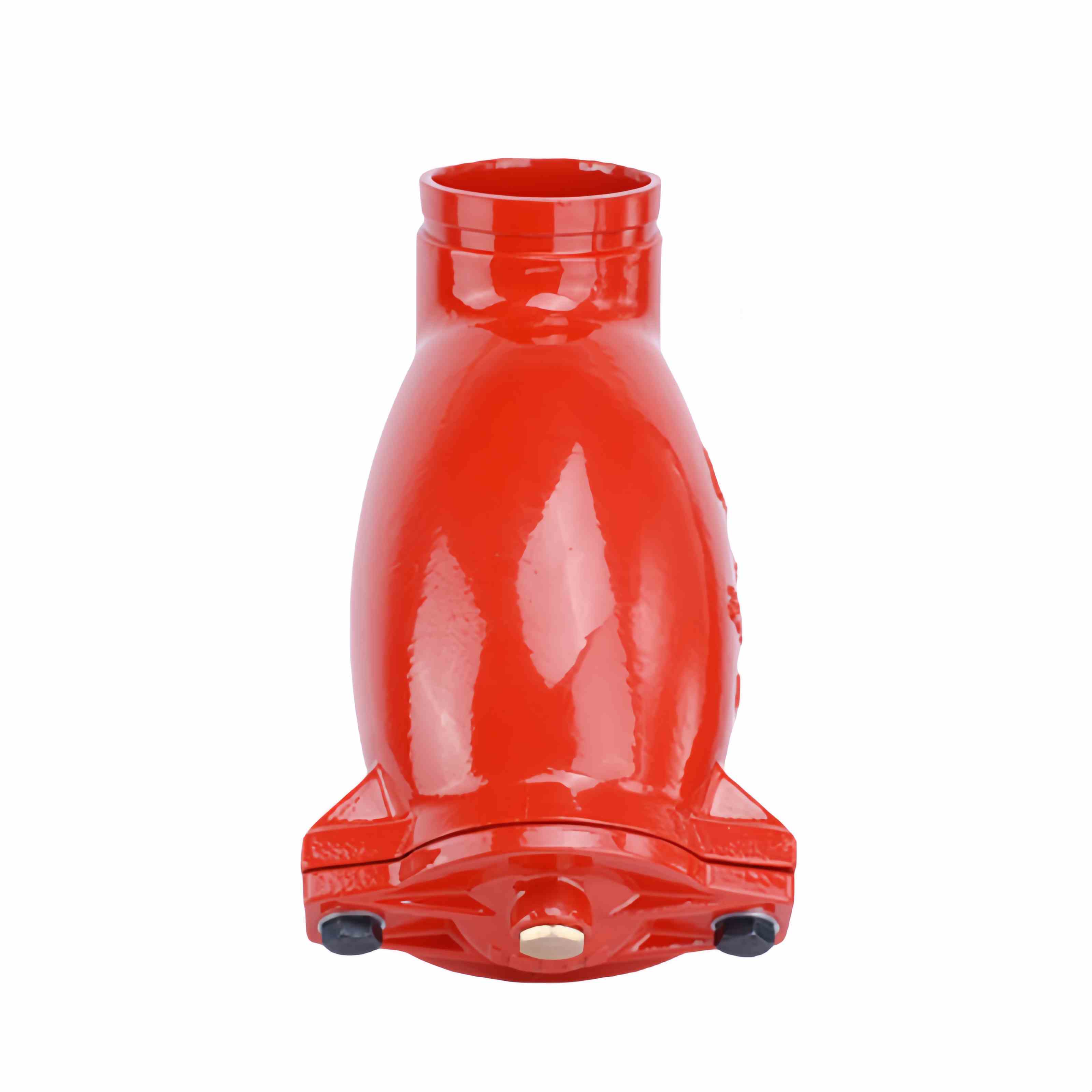

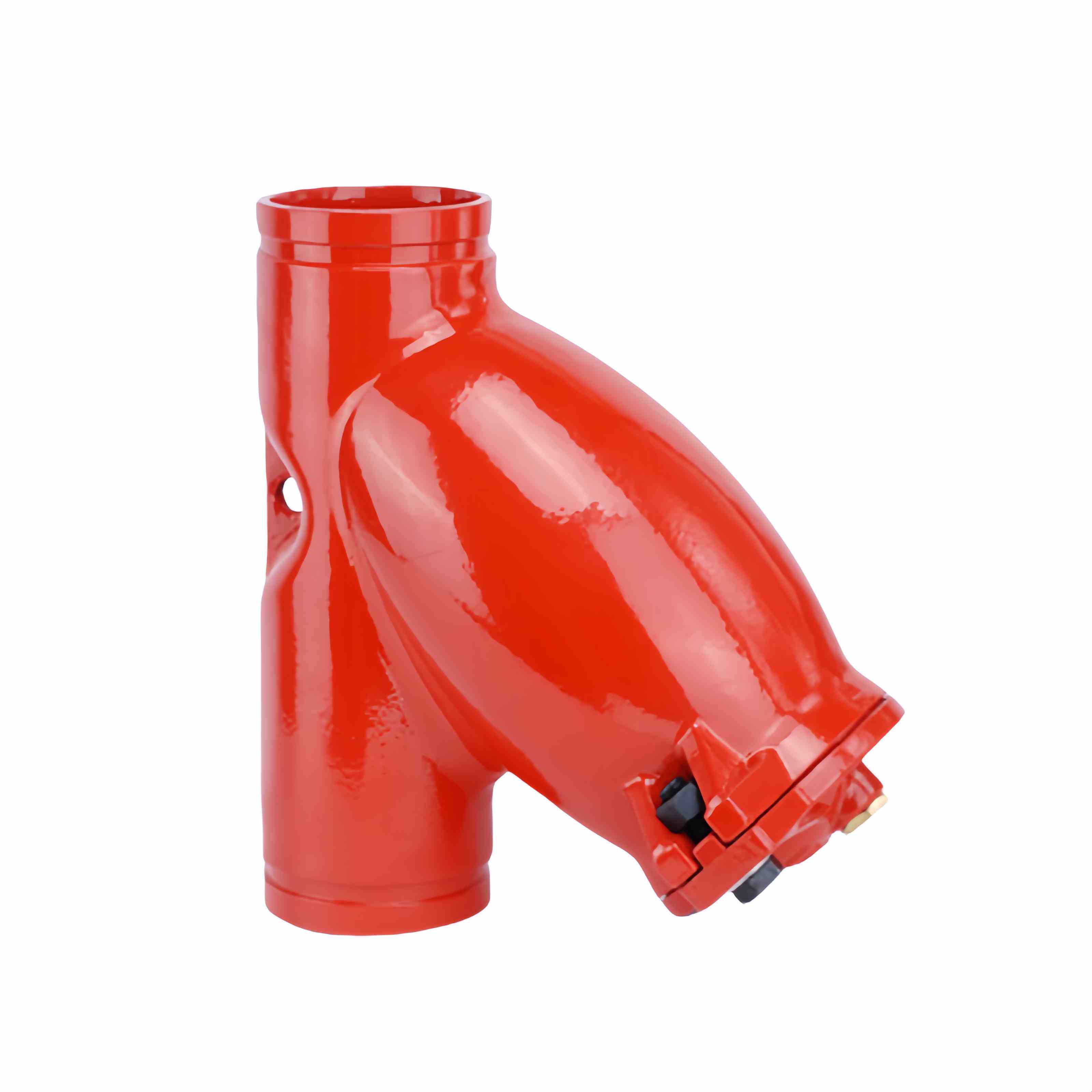

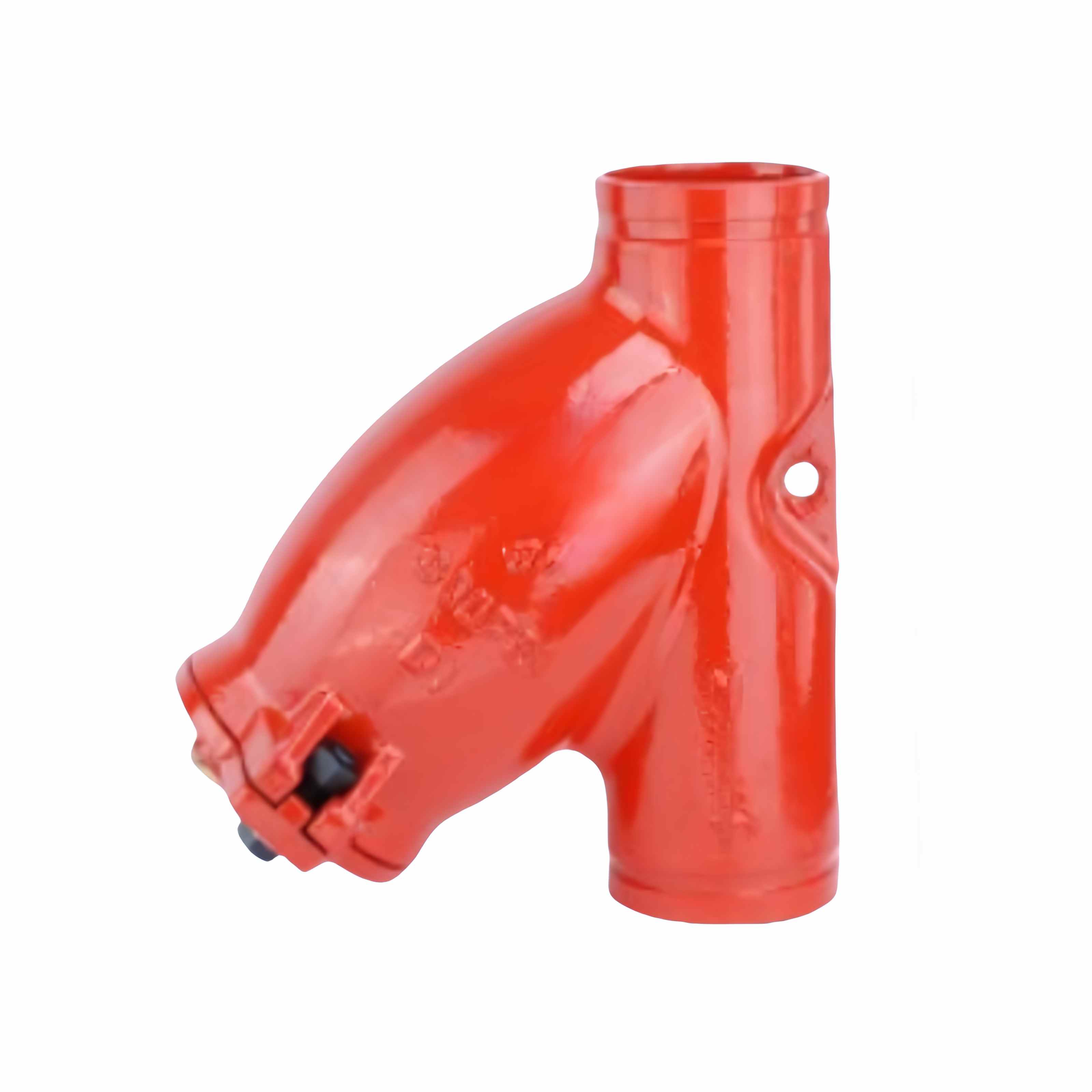

Y Strainer Valve Flange End

Y Strainer Valve with Groove End is a pipeline protection device designed for rapid installation and maintenance.

Material :
Ductile Iron
Diâmetro normal :
DN50 to DN200
Conexão :
Groove
Pressão de trabalho :
300 PSI
Tipo :
Y Strainer Valve
Aplicativo :
Fire Protection Systems etc
Quantidade mínima :
50 Pieces
Prazo de entrega :
15~45 Days

E-mail : jony@jyfire.com.cn

CONSULTE AGORA Bate-papo agora!

Product Description

Our Grooved End Y-Strainer Valves combine essential pipeline protection with the unparalleled speed of grooved installation. Designed to safeguard critical equipment like pumps and control valves from damaging debris, these strainers feature a robust Y-body and a cleanable stainless steel screen. The grooved ends allow for a bolt-tight connection in minutes, not hours, saving significant time and labor costs on your project. Ensure your system's integrity and efficiency with our high-performance, easy-to-maintain grooved Y-strainers.

It uses a perforated or wire mesh screen to mechanically remove damaging solids from flowing liquids, safeguarding critical downstream equipment. Its grooved ends make it a perfect choice for modern, efficient piping systems.

Features

• 90% Faster Installation: Grooved ends drastically reduce labor time and cost.

• Equipment Guardian: Protects pumps, valves, and nozzles from costly damage.

• Easy-Clean Design: Blow-off port allows for quick debris removal.

• Vibration & Misalignment Absorption: Grooved coupling provides a flexible, durable joint.

• Proven Reliability: Built with high-quality materials for long service life.

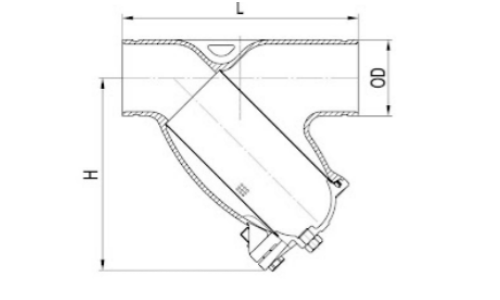

Product Parameter

Size	DN50-DN65-DN80-DN100-DN125-DN150-DN200
Wokring Pressure	300 PSI
Temperature Range	0~80 ℃
Body Material	Ductile Iron
Cover	Ductile Iron
Gasket	EPDM
Screen	SS304
Plug	Bronze

Q：What’s the MOQ for Y strainer valve ?

A：For standard sizes, our MOQ is usually 50 Pieces . For large sizes or special requirements, the MOQ can be one unit. We are always willing to provide customers with flexible solutions.

Q：What is your payment terms？

A：Payment supports T/T, L/C, etc. We also support payment via wechat or Alipay.

Q：What is the delivery time?

A：The production usually takes 15 to 45 days. For large or special orders, it may take 60 days or longer. We will provide you with an accurate production plan after placing your order.

One Stop Solution for fire hoses,sprinklers,nozzles,valves and pipe fittings!

JINYUAN TECHNOLOGY DEVELOPMENT CO.,LTD

Tel.：86-18159244550 Mobil:18159244550

EMAIL:Jony@jyfire.com.cn

ADD:CHENGGONG TECHNOLOGY ZONE PHASE 3,XIMEI TOWN,NAN'AN QUANZHOU CITY
