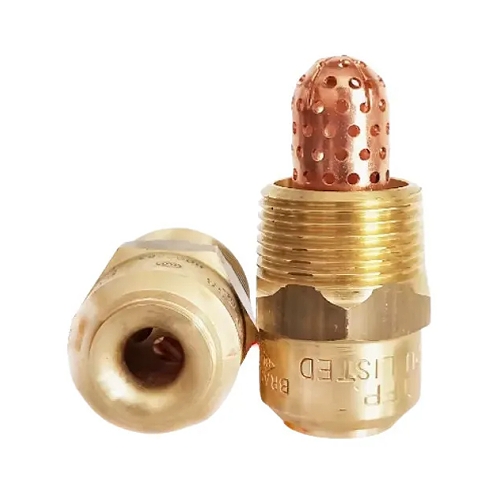

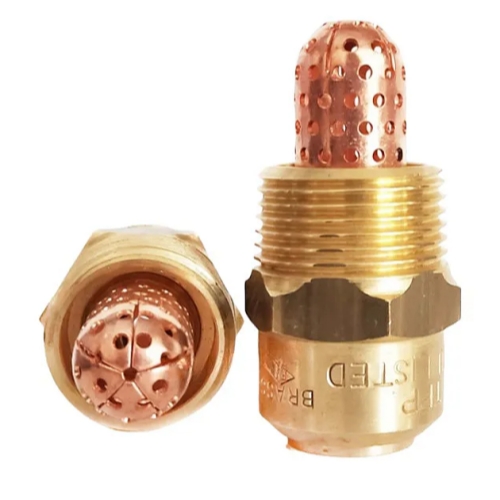

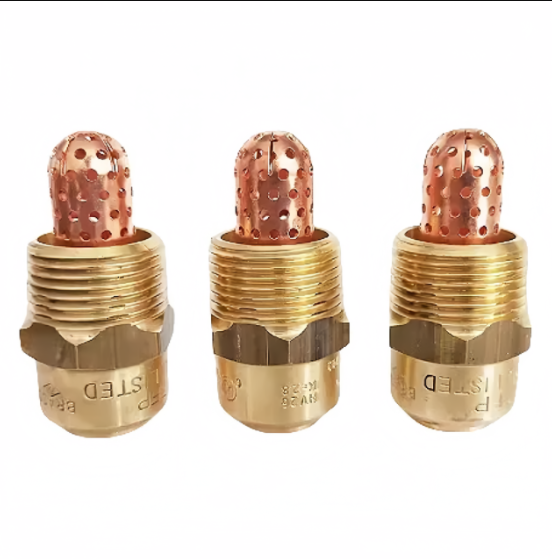

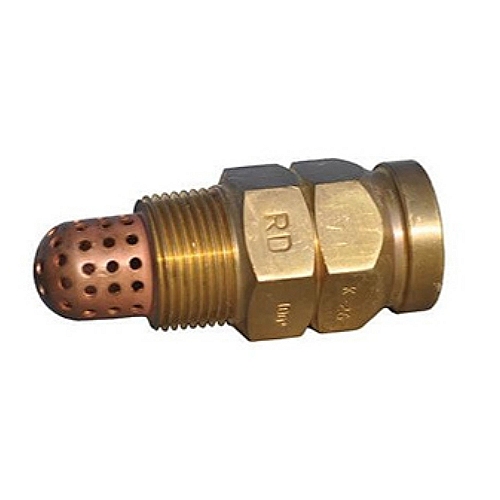

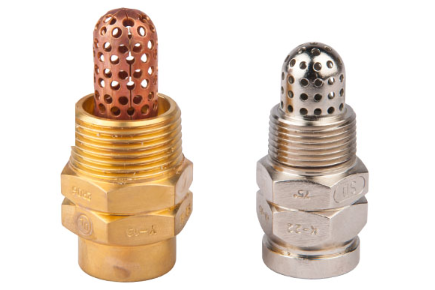

High-speed water mist nozzles use centrifugal force to tear water flow into micron-sized water droplets. When exposed to fire, it rapidly vaporizes, expands thousands of times in volume, absorbs a large amount of heat and isolates oxygen.
Material :
Brass CopperTamanho da rosca :
1/2 Inch 3/4 InchConfidencial :
NoneAcabamento de superfície :
Brass ChromeQuantidade mínima :
500 PiecesPrazo de entrega :
15~45 DaysE-mail : jony@jyfire.com.cn
Product Introduction
High-speed water mist nozzles utilize precision engineering to atomize water into micron-sized droplets. This technology enables efficient fire suppression through rapid cooling and oxygen depletion, while offering the advantages of low water consumption, minimal water damage, and high electrical insulation. These features make it ideal for combating fires involving electrical equipment, flammable liquids, and solids.
High-speed water mist nozzles do not merely break up water; they operate on the principle of precise energy conversion and physical phase change. Utilizing high pressure to generate high velocity and applying aerodynamic principles, these nozzles achieve ultrafine atomization. This process creates a massive total surface area, which enables highly efficient evaporative cooling and oxygen displacement. As a result, the system delivers exceptional cooling, fire suppression, and dust removal with minimal water consumption.
Product Features
• Radical Water Reduction: Achieves high-efficiency fire suppression with water consumption of only 1-10% of that of conventional sprinkler systems, resulting in unrivaled water utilization.
• Rapid Fire Suppression & Cooling: Combines rapid heat absorption through evaporation with oxygen displacement to extinguish flames and lower temperatures almost instantaneously.
• Effective Dust Suppression: Excellently captures and settles respirable dust particles from the air, improving visibility and air quality during an incident.
• Superior Electrical Insulation: The mist, composed of discrete droplets, exhibits high electrical resistivity, making it safe for suppressing incipient fires in live electrical equipment.
• Environmentally Clean & Non-damaging: Causes minimal water damage to protected areas and leaves no polluting residues, offering an eco-friendly solution.
Product Parameter
| Main Material | Brass Copper |
| Diameter Size | 1/2" 3/4"BSPT (1/2" 3/4" NPT Optional) |
| Working Pressure | 175 PSI |
| Finish | Brass Finish Nickel, Chrome Plated (optional) |
MOQ
Q：What are the differences between high-speed water mist nozzles and traditional fire nozzles?
A：Traditional sprinkler heads mainly rely on a large amount of water covering the surface of the burning object to extinguish the fire by lowering the temperature. The high-speed water mist spray nozzle, through high pressure and special design, breaks water into finer droplets than those of the sprinkler nozzle, increasing the contact area.
Q：What is the MOQ for high-speed water mist nozzles?
A：500 Pieces
Q：What is your payment terms？
A：Payment supports T/T, L/C, etc. We also support payment via wechat or Alipay.
